Prepare Custom Packages for macOS

To facilitate application distribution and delivery, Action1 enables you to create custom software deployment packages, upload them to Action1 Software Repository and then deploy to your managed endpoints. Standard process for creating a custom deployment package for macOS app includes the following steps:

  1. Download the application setup provided by the vendor. Supported file types are PKG, DMG, ZIP.
  2. Prepare the install.sh script that will perform the installation, using the example for the corresponding setup file type, as described in the next sections.
  3. Pack the install.sh and common.sh scripts and application setup into a single deployment package.
  4. Upload the package into Action1 Software Repository and distribute it automatically to the managed endpoints.

Deployment package structure

Deployment packages for macOS applications in the Action1 Software Repository comprise the following files:

  • Application setup file (obtained from the software vendor) of DMG, PKG, or ZIP type.

NOTE: If the application can target different architectures, make sure you have the setup file for each target architecture you need (for example, x86_64 or arm64).

  • install.sh – a bash script that performs the installation and interacts with Action1 agent. You need to modify this file when you customize the package.
  • common.sh – a script that implements checks and other operational functions. This file always stays the same for all packages.
NOTE: Application setup provided as a PKG file packed into a DMG file is not supported in the current version.

To prepare a custom deployment package, you need to pack these three files into a single ZIP archive using 7-Zip or any other archiving tool.

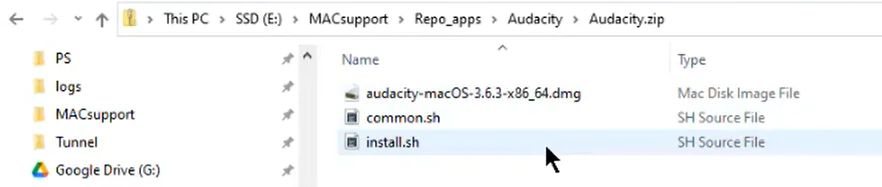

IMPORTANT! Make sure these files are stored in the archive’s root and not included into any folder or subfolder – otherwise the Action1 agent will fail to locate and use them. The ZIP archive structure must look like shown below, including 2 scripts and application setup (DMG, PKG, or ZIP file).
Uploading a ZIP package

Install.sh script

The install.sh installation script has certain external named parameters; it receives their values from Action1 before starting the installation. For example:

  • -m update parameter value instructs the script to operate in the update mode for the application that already exists.
  • -s error parameter value will trigger an error if the script detects the application is open during the installation.

Parameter name

-m
-s
-f
-b
-p
-v

Description

Deployment mode
Interaction with the app processes
Destination folder for app upgrade
Build number
Custom path for the app installation
Script logging level

Values

install update
error kill (default) ignore
folder
build_number
/folder
ERR WARN INFO (default) DBG
  • In a simple scenario, you can provide, for example, the -s parameter value using Action1 console, as described in the next section.
  • In the advanced scenario, you will need to define the internal parameters and specify their values, as described later in this document.

Simple scenario: customization with UI

In a simple customization scenario, you just clone the existing built-in software package and modify its install.sh external parameter values using Action1 web console.
For example, out of the box, the installation script works as follows: it checks whether the application is open during the installation; if yes, it stops the application and installs the update. However, you may want to change this behavior and instruct the script not to install the update but just display an error message without stopping the application. For that, take these steps:

  1. In Action1 console, clone the existing built-in deployment package.
  2. Go to this new package and select the required version.
  3. In the Installation settings, enter the following in the Silent install switch:
    -s error
  4. Click Save.

Advanced scenario: template-based customization

In this scenario, you can use the corresponding built-in software package as a template and customize the installation script parameters manually. Steps for customization are always the same:

  1. Use the software setup obtained from the vendor.
  2. Modify the install.sh file that corresponds to the software setup type.
  3. Pack these two files and common.sh file into a single ZIP archive.
  4. Upload the archive to Action1 Software Repository, as described in this section.

Customizing installation script

Depending on your setup file extension, you should configure a different set of parameters in the install.sh script. The biggest set of parameters is used by the install.sh script designed for DMG setup.

You can open the script using your editing tool and locate function main () to modify the parameters.

NOTE: It is recommended that you edit the script on a macOS machine using the Mac tools. If you plan to use a Windows machine and editing tool like Notepad++, consider that it may append the “CR” (‘\\r’) character to each line when saving the file. In this case, make sure that you have removed these characters from the code, otherwise, the script will fail to run.
The biggest set of parameters is used by the install.sh script designed for DMG setup.

Parameter name

display_name
proc_names
dmg_mount_point
default_app_folder
dmg_root_folder
src_app_folder
binary_path

Description

Name of the deployment package that Action1 will use when displaying History messages. Enter a meaningful name here.
Application process name for the application you plan to install or update. As mentioned above, the script checks if the application process is running during the installation. NOTE: If there are multiple processes, specify their names separated by space.
Do not modify. Files mount point.
Default application folder. To discover this location, go to Applications, open Finder, and in Finder Settings select Show all filename extensions. Find the application location displayed as Name.app.

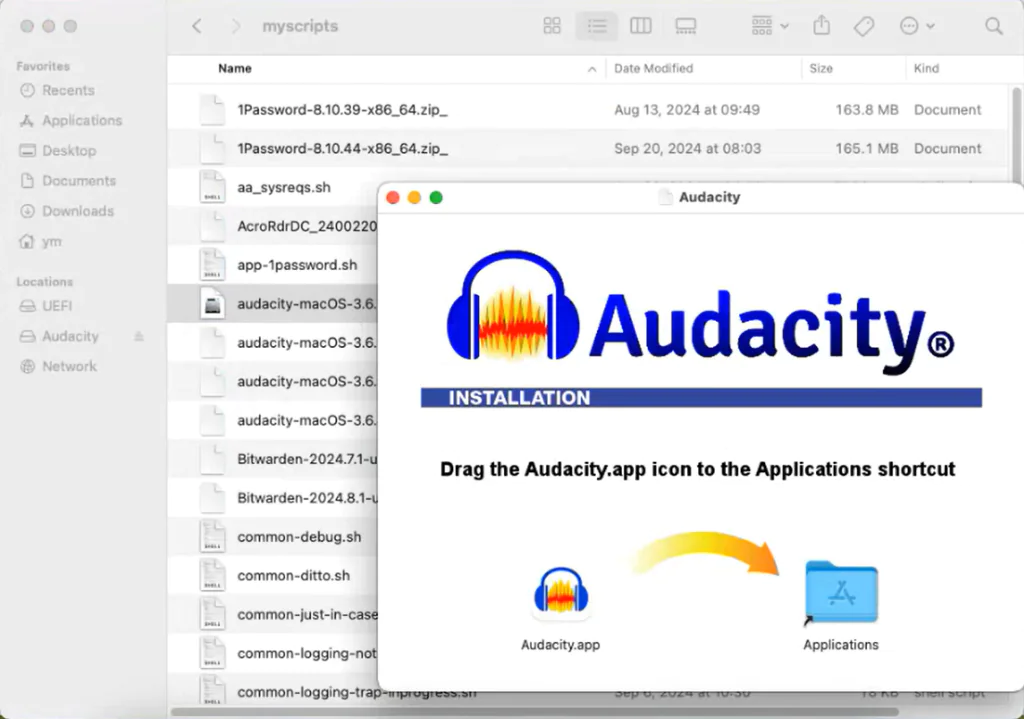

Folder where the application package will appear after mounting. To discover its name, try a test mount: locate your DMG file and double-click it. Mount folder name will appear under Locations on the left. Then you can unmount the file (Eject).
Filled in automatically. Do not change.
Path to setup binary. Is used to detect app target architecture. To discover, in Finder navigate to the required application and select Show Package Contents from the shortcut menu. Browse the package contents and locate the setup binary (usually under Contents | MacOS), copy the file name.

Syntax

'name'
("proc_name1" "proc_name2")
'./local_mnt'
"/Name.app"
"${dmg_mount_point}/Name"
"${dmg_root_folder}/${default_app_folder}"
"./${src_app_folder}/Contents/MacOS/name"

Example

'Audacity'
("Audacity")
'./local_mnt'
"/Audacity.app"
"${dmg_mount_point}/Audacity"
"${dmg_root_folder}/${default_app_folder}"
"./${src_app_folder}/Contents/MacOS/Audacity"
Creating a dumb installation package
NOTE: MacOS is case-sensitive, so make sure you copy and paste all names correctly.

After you have modified the install.sh parameters, save the file, and include it in the ZIP archive together with common.sh and the application setup.

How can I debug my customized install.sh script?

For that, you can run your install.sh using bash command. This will eliminate the need to pack the files into software package, deploy and unpack them back and forth.

NOTE: Running install.sh requires root privileges, so use sudo to elevate your account privileges.

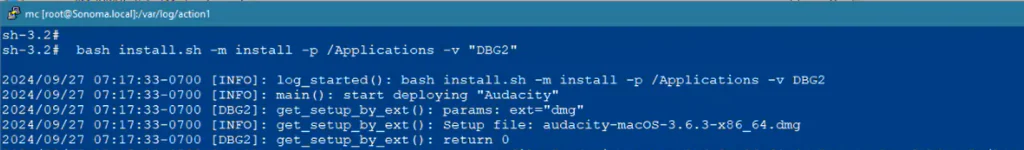

  • To test the script operation, use bash command, for example:
    bash install.sh -m install -p /Applications
    This command will run the script in the install mode to help you test a new installation.
  • To test the upgrade mode, run a command like this:
    bash install.sh -m upgrade -p /Applications -f Audacity.app
  • To maximize the logging level, use -v “DBG2” parameter value:
    bash install.sh -m install -p /Applications -v “DBG2”
Creating a dumb installation package
